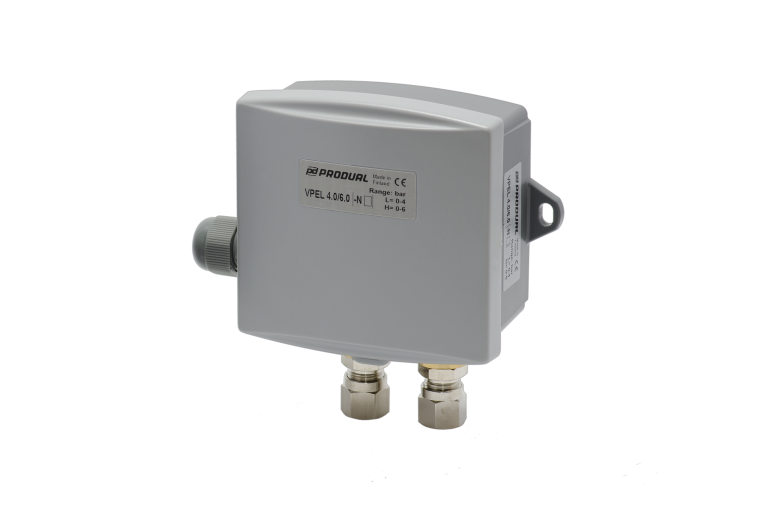

VPEL Water Differential Pressure Transmitter

Produal VPEL

The VPEL differential pressure transmitter is designed to detect water/glycol pressure in heating and cooling systems.

Power supply

24 Vac/dc, < 1 VA

Measuring range

0…1,0 / 0...2,5 bar

Accuracy / Resolution

± 2.5% of the full scale

Output signal

4...20 mA, < 500 Ω 0...10 Vcc, 5 mA

Environmental protection

IP54

Temperature

-20...70 °C

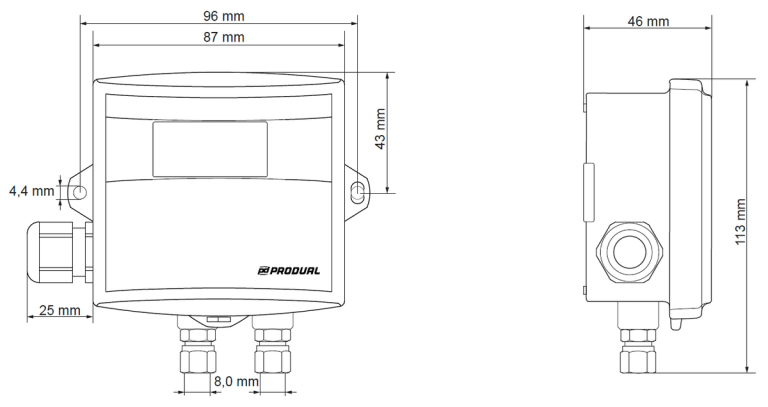

Dimensions

118 x 113 x 46 mm

Housing / Materials / Connections

PC plastic

VPEL 1.0/2.5

Differential water pressure transmitter, range 0 to 1.0 bar or 0 to 2.5 bar

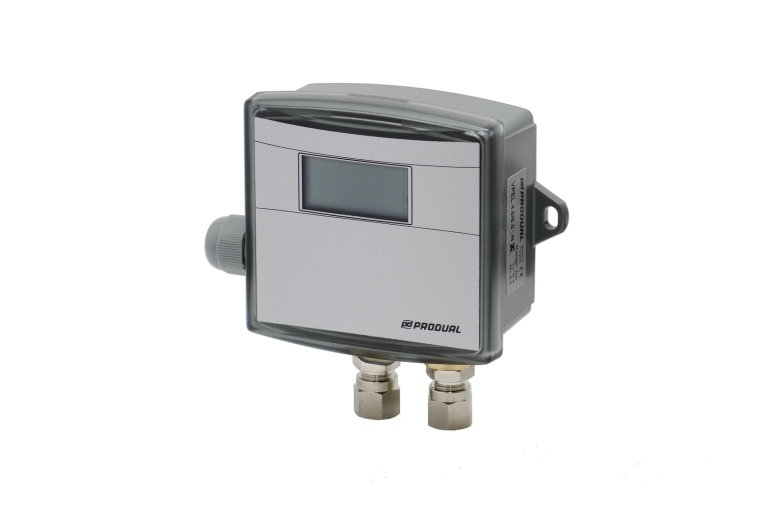

VPEL 1.0/2.5-N

Differential water pressure transmitter, display, range 0 to 1.0 bar or 0 to 2.5 bar

VPEL 4.0/6.0

Differential water pressure transmitter, range 0 to 4.0 bar or 0 to 6.0 bar

VPEL 4.0/6.0-N

Differential water pressure transmitter, display, range 0 to 4.0 bar or 0 to 6.0 bar

CE certificate
