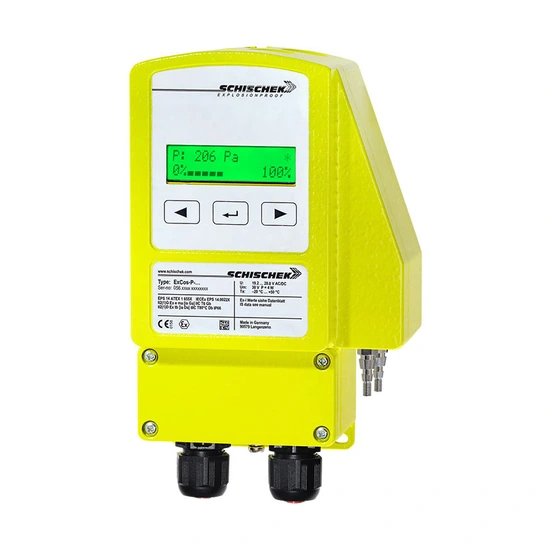

ATEX ExCos-P Differential Pressure Transmitter
Schischek ExCos-P
Differential pressure transmitter with ATEX certification for zone 1, 2 (gas) and zone 21, 22 (dust).
The ExCos-P-… pressure sensor series, ranging from ±100 Pa to ±7,500 Pa (depending on the model), represents a revolution in differential pressure measurement for HVAC systems, as well as chemical, pharmaceutical, industrial, and offshore/onshore plants, for use in hazardous areas: Zone 1, 2 (gas) and Zone 21, 22 (dust).
The highest protection class (ATEX) and IP66 protection, along with their compact dimensions, universal functionality, and technical specifications, guarantee safe operation even in harsh environments.
All sensors are programmable on-site without the need for additional tools. Measurement ranges are scalable within the maximum ranges. In the …Cos-P-100 model, the minimum ∆P range is 20 Pa. The analogue output signal can be selected on-site from 0–10 VDC or (0)4–20 mA. The integrated display allows for parameterization and shows the current value in operating mode (it can be deactivated if necessary).
The …Cos-P-…-OCT and …-OVA versions for offshore applications are equipped with 6 mm diameter stainless-steel tubing.
Power supply
24 VAC/DC ±20 % (19,2...28,8 VAC/DC), 50/60 Hz
Measurement/s
Pressure
Units of measurement
Pa
Measuring range
±100 Pa, ±250 Pa, ±500 Pa, ±1.250 Pa, ±2.500 Pa, ±5.000 Pa, ±7.500 Pa
Power consumption
150 mA, ~ 4 W, internal fuse 500 mA, non-removable
Display / Interface
2 x 16 digits, backlit
Dimensions
180 × 107 × 66 mm
Weight
950 g
Temperature
-20...+50 °C
Ambient humidity
0...95 % rH
Environmental protection
IP66
Output signal
0...10Vdc > 1 kΩ, 4...20 mA < 500 Ω
Certifications / Standards
ATEX directive: 2014/34/EU EC type-approved: EPS 14 ATEX 1 655 X IECEx certified: IECEx EPS 14.0022X Approval for gas: II 2 (1) G Ex eb ma [ia Ga] IIC T6...T4 Gb Types ...-CT, ...-OCT: II 2 (1) G Ex eb ma [ia Ga] IIB T6 Gb (alternative) Approval for dust: II 2 (1) D Ex tb [ia Da] IIIC T80°C...T130°C Db IP66
ExCos-P-100
Range of ± 100 Pa with a minimum range of 20 Pa
ExCos-P-250
Range of ± 250 Pa with a minimum range of 50 Pa
ExCos-P-500
Range of ± 500 Pa with a minimum range of 100 Pa
ExCos-P-1250
Range of ± 1250 Pa with a minimum range of 250 Pa
ExCos-P-2500
Range of ± 2500 Pa with a minimum range of 500 Pa
ExCos-P-5000
Range of ± 5000 Pa with a minimum range of 1000 Pa
ExCos-P-7500
Range of ± 7500 Pa with a minimum range of 1500 Pa
-A
Additional intrinsically safe analogue output for connecting to an external digital indicator
-CT
Aluminium encapsulation with marine corrosion-resistant coating
-OCT
"Offshore" version with "Amercoat" coating (stainless steel tubes)
